Ford Fusion: Engine - 1.5L EcoBoost (118kW/160PS) – I4 / Oil Pan. Removal and Installation

Special Tool(s) / General Equipment

Strap Wrench
Oil Drain Equipment

Materials

Name Specification
Motorcraft® High Performance Engine RTV Silicone
TA-357
WSE-M4G323-A6

Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil
XO-5W20-Q1SP
WSS-M2C945-B1


Removal

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

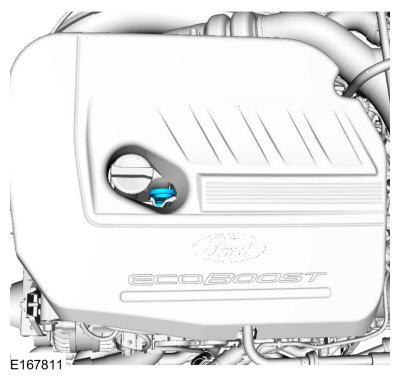

  1. Remove the oil level indicator.
Ford Fusion. Oil Pan. Removal and Installation

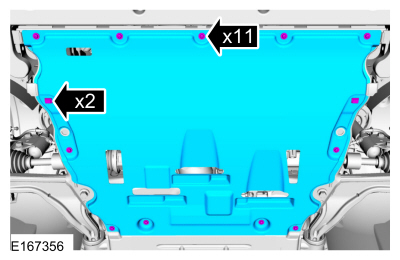

  1. Remove the retainers and the engine undershield.
Ford Fusion. Oil Pan. Removal and Installation

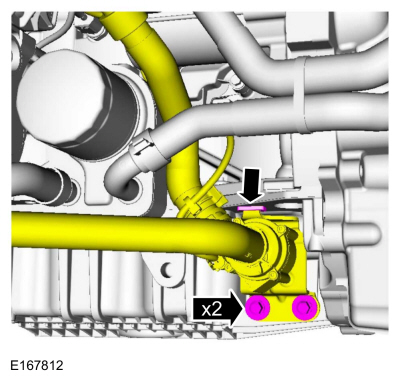

  1. Remove the bolts, release the tab and position the coolant hoses aside.
Ford Fusion. Oil Pan. Removal and Installation

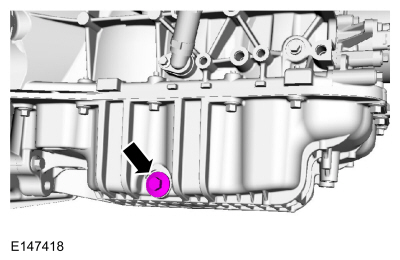

  1. Remove the drain plug, drain engine oil and install the drain plug.
    Use the General Equipment: Oil Drain Equipment
    Torque: 21 lb.ft (28 Nm)
Ford Fusion. Oil Pan. Removal and Installation

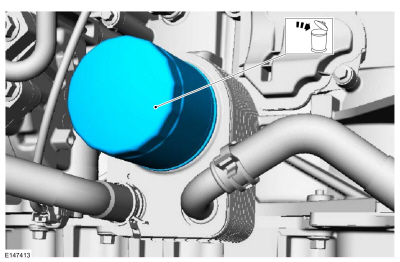

  1. Remove and discard the engine oil filter.
    Use the General Equipment: Oil Drain Equipment
    Use the General Equipment: Strap Wrench
Ford Fusion. Oil Pan. Removal and Installation

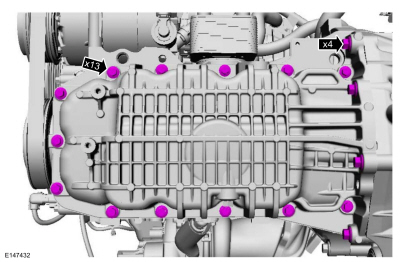

  1. Remove the oil pan bolts.
Ford Fusion. Oil Pan. Removal and Installation

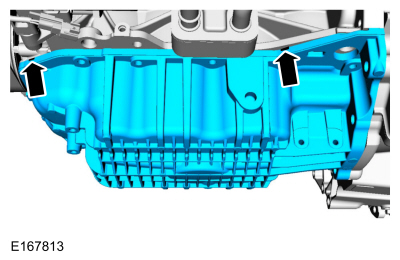

  1. Using the pry pads, remove the oil pan.
Ford Fusion. Oil Pan. Removal and Installation

Installation

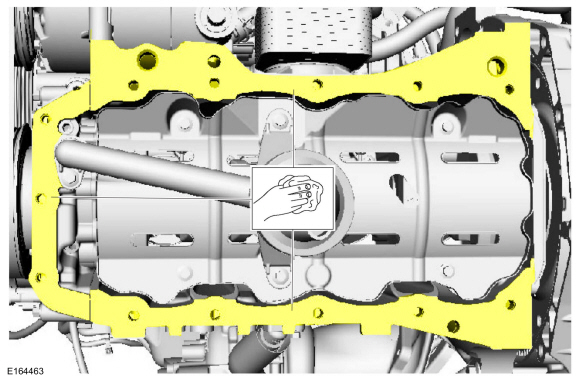

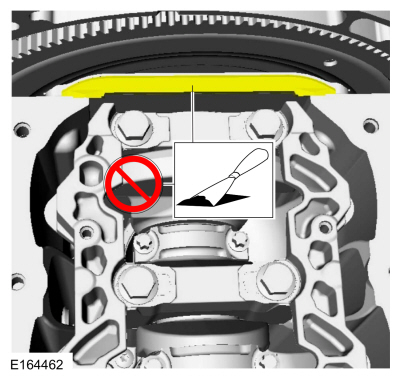

  1. Clean and prepare the RTV sealing surface.
    Refer to: RTV Sealing Surface Cleaning and Preparation (303-00 Engine System - General Information, General Procedures).
Ford Fusion. Oil Pan. Removal and Installation

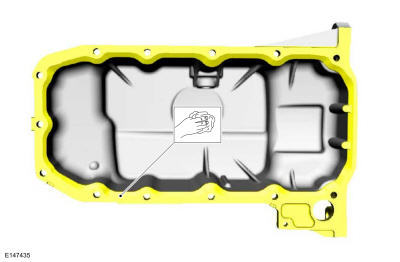

  1. Clean and prepare the RTV sealing surface.
    Refer to: RTV Sealing Surface Cleaning and Preparation (303-00 Engine System - General Information, General Procedures).
Ford Fusion. Oil Pan. Removal and Installation
  1. Clean and prepare the RTV sealing surface.
    Refer to: RTV Sealing Surface Cleaning and Preparation (303-00 Engine System - General Information, General Procedures).
Ford Fusion. Oil Pan. Removal and Installation

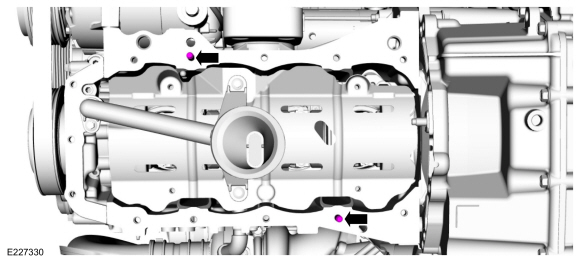

  1. Install the following items:
    • NOTE: The use of the two studs will aid in the alignment of the oil pan.

      Install the two M8x20 studs.
Ford Fusion. Oil Pan. Removal and Installation

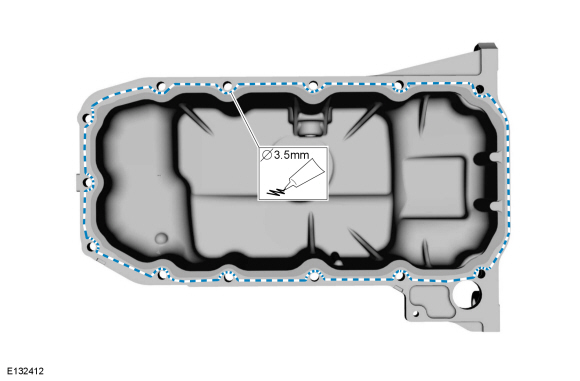

  1. NOTE: The component must be installed within 5 minutes of applying the sealant.

    Apply a 3.5 mm (0.137 in) bead of silicone sealant.
    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
Ford Fusion. Oil Pan. Removal and Installation

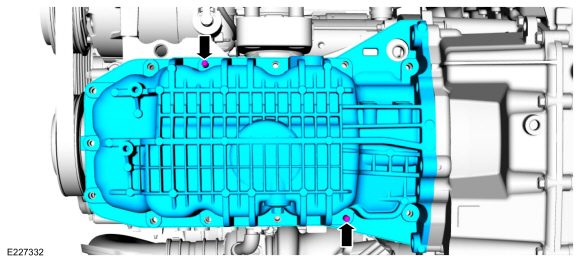

  1. Install the oil pan and remove the alignment studs.
Ford Fusion. Oil Pan. Removal and Installation
  1. NOTE: Only tighten the bolts finger tight at this stage.

    Install the oil pan bolts finger-tight.
Ford Fusion. Oil Pan. Removal and Installation

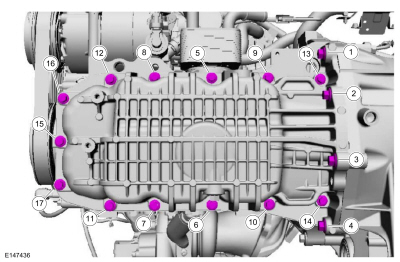

  1. Tighten the oil pan bolts in sequence shown.
    Torque:
       1 - 4:   35 lb.ft (47 Nm)
       5 - 17:   168 lb.in (19 Nm)
Ford Fusion. Oil Pan. Removal and Installation

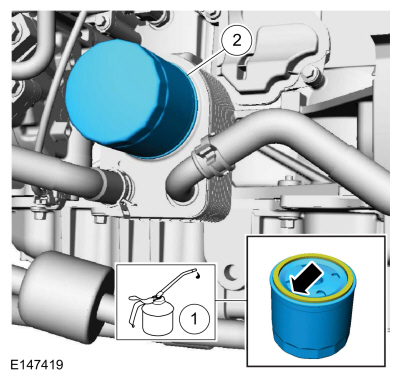

  1. Lubricate and install the new engine oil filter.
    Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)
    Torque: 128 lb.in (14.5 Nm)
Ford Fusion. Oil Pan. Removal and Installation
  1. Position the coolant hoses assembly and install the bolts.
    Torque: 17 lb.ft (23 Nm)
Ford Fusion. Oil Pan. Removal and Installation
  1. Install the engine undershield and the retainers.
Ford Fusion. Oil Pan. Removal and Installation
  1. Fill the engine with engine oil.
    Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)
  1. Install the oil level indicator.
Ford Fusion. Oil Pan. Removal and Installation
