Ford Fusion: Automatic Transmission - 6-Speed Automatic Transmission – 6F35 / Low One-Way Clutch Assembly. Diagnosis and Testing

Low One Way Clutch

For low one way clutch operation, REFER to: Transmission Description (307-01A Automatic Transmission - 6-Speed Automatic Transmission – 6F35, Description and Operation).
REFER to: Low One-Way Clutch Assembly (307-01A Automatic Transmission - 6-Speed Automatic Transmission – 6F35, Description and Operation).

NOTICE: Do not clean in water or with water-based solvents. Damage to the component may occur.

NOTE: The low one way clutch cannot be disassembled.

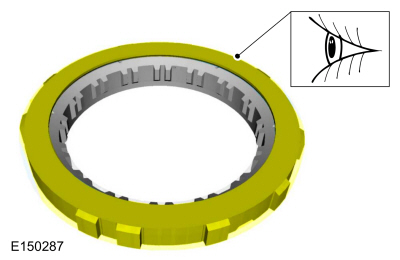

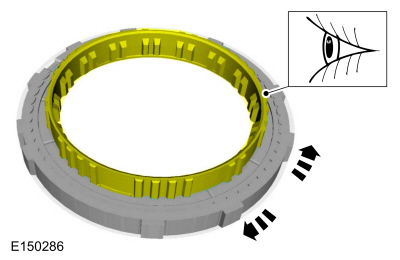

Clean and inspect the low one way clutch for cracks and damaged splines. The internal splined section should rotate clockwise and lock when rotated counterclockwise. Check for burned or excessively worn surface. If any damage is found or the clutch does not rotate or lock, INSTALL a new low one way clutch.
