Ford Fusion: Evaporative Emissions - 1.5L EcoBoost (118kW/160PS) – I4 / Evaporative Emission Canister. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
  1. Disconnect the negative battery cable.
    Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
  1. NOTE: Typical application shown.

    NOTE: Clean the EVAP canister vent solenoid electrical connector and the immediate surrounding area of any dirt or foreign material.

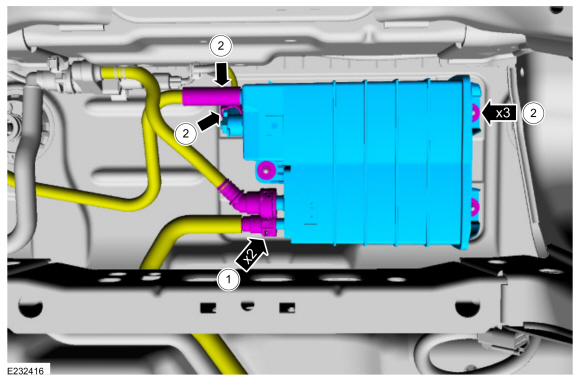

    1. Disconnect the EVAP canister quick connect couplings.
      Refer to: Quick Release Coupling (310-00A Fuel System - General Information - 1.5L EcoBoost (118kW/160PS) – I4, General Procedures).
    1. Disconnect the EVAP canister electrical connector, vent tube and remove the nuts and the EVAP canister.
      Torque: 62 lb.in (7 Nm)
Ford Fusion. Evaporative Emission Canister. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
