Ford Fusion: Engine - 1.5L EcoBoost (118kW/160PS) – I4 / Engine Mount. Removal and Installation

Special Tool(s) / General Equipment

Trolley Jack
Wooden Block

Removal

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

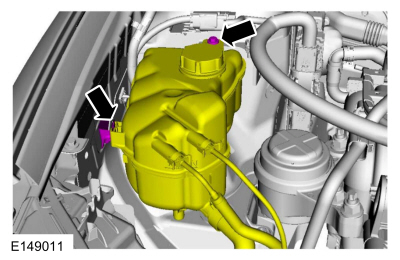

  1. Release the tab, remove the retainer and position the degas bottle aside.
Ford Fusion. Engine Mount. Removal and Installation

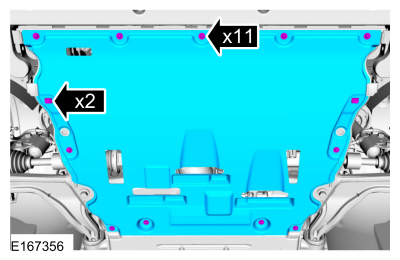

  1. Remove the retainers and the engine undershield.
Ford Fusion. Engine Mount. Removal and Installation

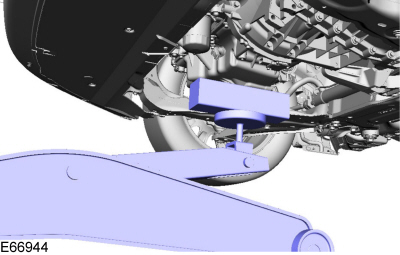

  1. Install the following items:
    • Use the General Equipment: Trolley Jack
      Use the General Equipment: Wooden Block
Ford Fusion. Engine Mount. Removal and Installation

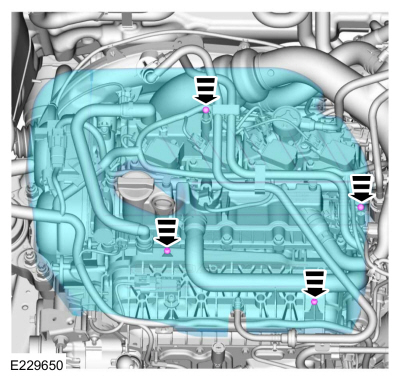

  1. Remove the engine appearance cover.
Ford Fusion. Engine Mount. Removal and Installation

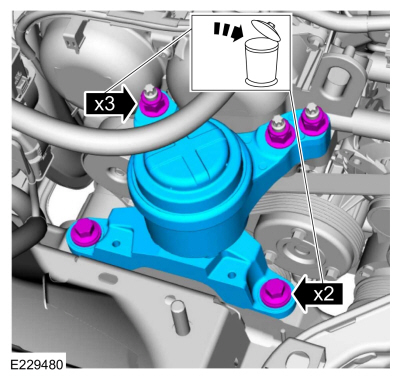

    • Remove the bolts, nuts and the engine mount.
    • Discard the nuts and bolts.
Ford Fusion. Engine Mount. Removal and Installation

Installation

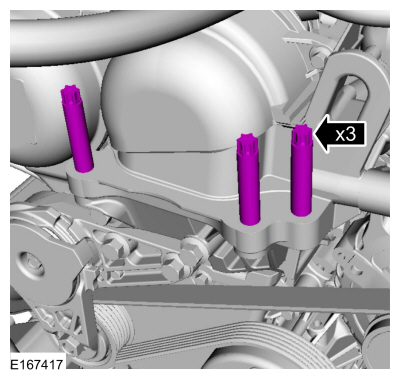

  1. Tighten the engine mount studs.
    Torque: 89 lb.in (10 Nm)
Ford Fusion. Engine Mount. Removal and Installation

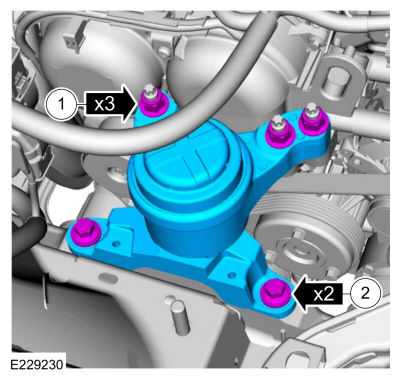

    1. Install the engine mount and the new nuts.
      Torque: 85 lb.ft (115 Nm)
    1. Install the new engine mount bolts finger-tight.
Ford Fusion. Engine Mount. Removal and Installation
  1. Remove the following items:
    • Use the General Equipment: Trolley Jack
      Use the General Equipment: Wooden Block
Ford Fusion. Engine Mount. Removal and Installation
  1. Tighten the engine mount bolts.
    Torque: 66 lb.ft (90 Nm)
Ford Fusion. Engine Mount. Removal and Installation
  1. Install the engine appearance cover.
Ford Fusion. Engine Mount. Removal and Installation
  1. Install the engine undershield and the retainers.
Ford Fusion. Engine Mount. Removal and Installation
  1. Position the degas bottle and install the retainer.
    Torque: 80 lb.in (9 Nm)
Ford Fusion. Engine Mount. Removal and Installation
