Ford Fusion: Hydraulic Brake Actuation / Brake Pedal and Bracket. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Chassis / Brake System / Hydraulic Brake Actuation / Brake Pedal and Bracket. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. NOTICE: Do not service the brake pedal or brake booster without first removing the stoplamp switch. This switch must be removed with the brake pedal in the at-rest position. The switch plunger must be compressed for the switch to rotate in the bracket. Attempting to remove the switch when the plunger is extended (during pedal apply) will result in damage to the switch.

    Remove the stoplamp switch.
    Refer to: Stoplamp Switch (417-01 Exterior Lighting, Removal and Installation).
  1. Remove the accelerator pedal.
    Refer to: Accelerator Pedal (310-02 Acceleration Control, Removal and Installation).

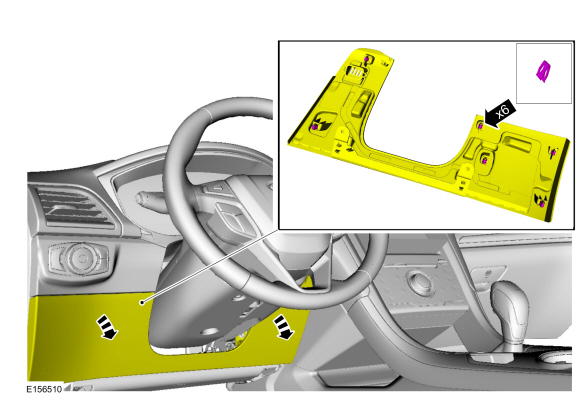

  1. Detach the steering column opening cover clips and lower the cover.
Ford Fusion. Brake Pedal and Bracket. Removal and Installation

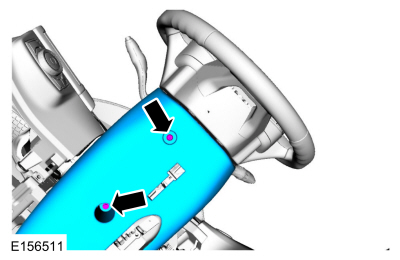

  1. Remove the screws and the lower steering column shroud.
Ford Fusion. Brake Pedal and Bracket. Removal and Installation

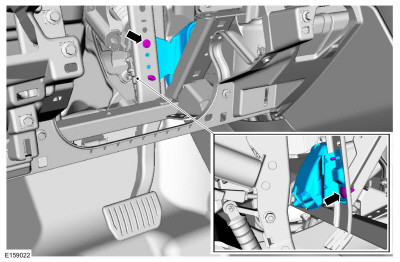

  1. Remove the screw, the pin-type retainer and the HVAC duct.
Ford Fusion. Brake Pedal and Bracket. Removal and Installation

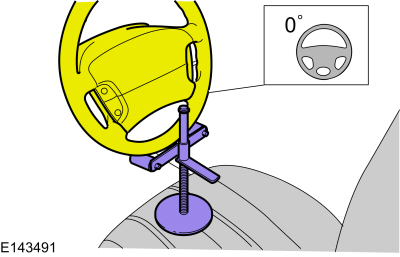

  1. NOTICE: Do not allow the steering column shaft to rotate while disconnected from the gear or damage to the clockspring may occur. If there is evidence that the steering column shaft has rotated, remove and recenter the clockspring. Refer to Section 501-20B.

    Secure the steering wheel using a steering wheel holding device.
Ford Fusion. Brake Pedal and Bracket. Removal and Installation

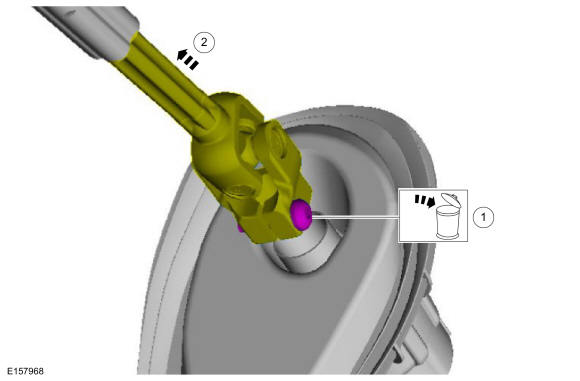

  1. Ford Fusion. Brake Pedal and Bracket. Removal and Installation  WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    Remove and discard the steering column shaft bolt.
Ford Fusion. Brake Pedal and Bracket. Removal and Installation

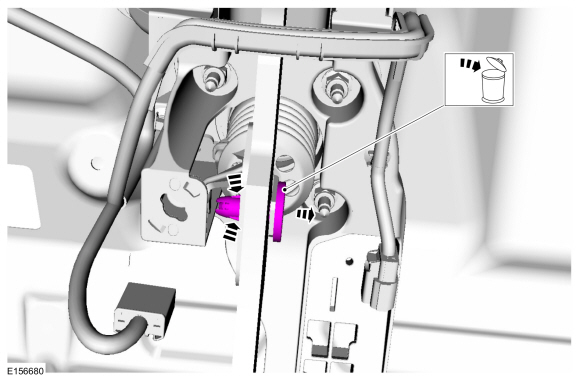

  1. Compress the tabs and remove the clevis pin. Discard the pin.
Ford Fusion. Brake Pedal and Bracket. Removal and Installation

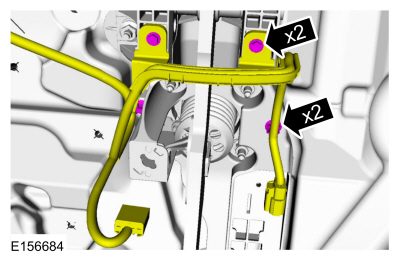

  1. Remove the screws, detach the wiring retainers and position the wiring aside.
Ford Fusion. Brake Pedal and Bracket. Removal and Installation

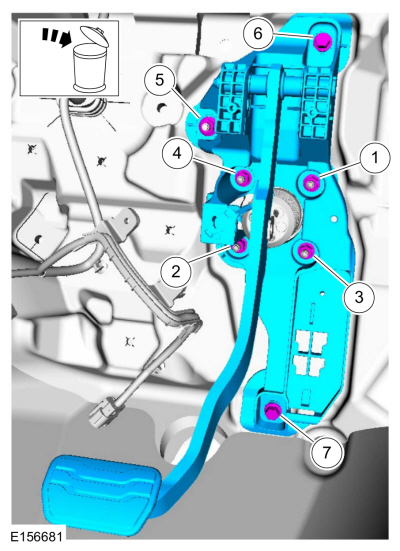

  1. NOTE: Have an assistant pull the brake booster and master cylinder assembly forward to allow the brake pedal and bracket to clear the brake booster studs during removal and installation.

    Remove the nuts, bolts and the brake pedal and bracket. Discard the nuts and bolts.
    Torque: 17 lb.ft (23 Nm)
Ford Fusion. Brake Pedal and Bracket. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
