Ford Fusion: Rear Disc Brake / Brake Disc Shield. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Chassis / Brake System / Rear Disc Brake / Brake Disc Shield. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the brake disc.
    Refer to: Brake Disc (206-04 Rear Disc Brake, Removal and Installation).

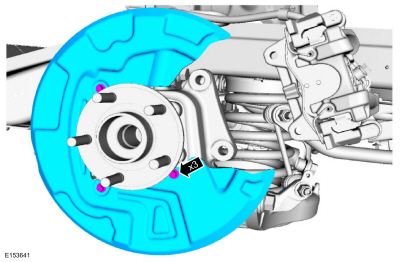

  1. Remove the bolts and the brake disc shield.
    Torque: 106 lb.in (12 Nm)
Ford Fusion. Brake Disc Shield. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
