Ford Fusion: Information and Entertainment System - General Information - Vehicles With: SYNC 3 / Audio Front Control Module (ACM) - Police. Removal and Installation

Removal

NOTE: Make sure that any media is ejected from unit.

NOTE: Removal steps in this procedure may contain installation details.

  1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

    Upload the ACM configuration to the scan tool by following the scan tool on-screen instructions.
  1. Remove the FCIM.
    Refer to: Front Controls Interface Module (FCIM) - Police (415-00 Information and Entertainment System - General Information - Vehicles With: SYNC 3, Removal and Installation).

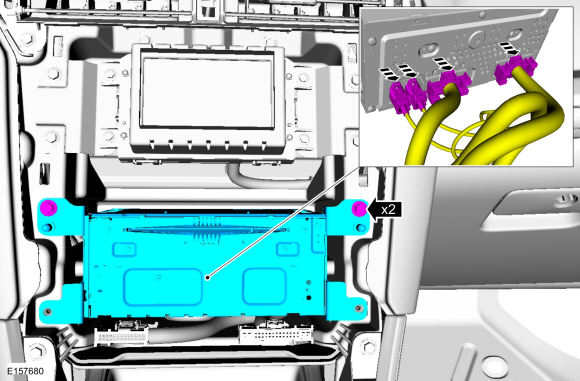

  1. Remove the bolts and the ACM.
    • Disconnect the electrical connectors.
      Torque: 22 lb.in (2.5 Nm)
Ford Fusion. Audio Front Control Module (ACM) - Police. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
  1. Download the ACM configuration information from the scan tool to the new ACM following the scan tool on-screen instructions.
