Ford Fusion: Climate Control System - General Information / Air Conditioning (A/C) Clutch and Air Conditioning (A/C) Clutch Field Coil. General Procedures

Ford Fusion 2013–2020 Service Manual / Electrical / Climate Control System / Climate Control System - General Information / Air Conditioning (A/C) Clutch and Air Conditioning (A/C) Clutch Field Coil. General Procedures

Special Tool(s) / General Equipment

Ford Fusion. Air Conditioning (A/C) Clutch and Air Conditioning (A/C) Clutch Field Coil. General Procedures 412-001 (T71P-19703-B)
Remover, Compressor Pulley

Activation

  1. Remove the A/C compressor. Refer to Air Conditioning A/C Compressor procedure in Group 412.

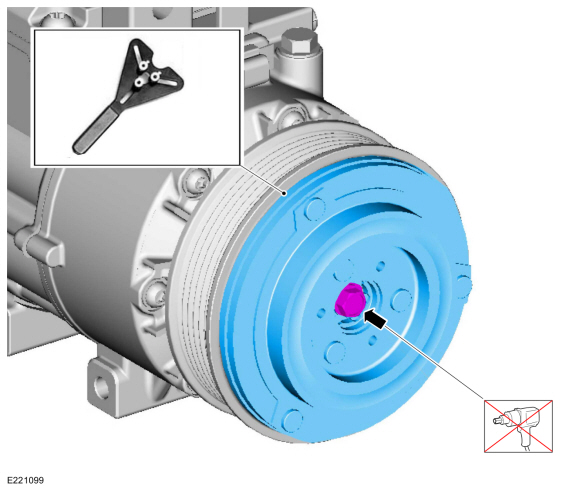

  1. NOTE: If equipped with spring rubber clutch.

    Using the universal clutch holding tool, hold the clutch and remove the A/C clutch disc and hub bolt.
    • For fixed compressor
      Torque: 177 lb.in (20 Nm)
    • For EVDC compressor
      Torque: 128 lb.in (14.5 Nm)
Ford Fusion. Air Conditioning (A/C) Clutch and Air Conditioning (A/C) Clutch Field Coil. General Procedures

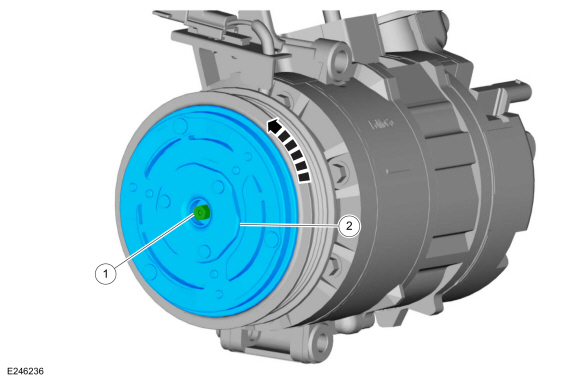

  1. NOTE: If equipped with spring plate clutch.

    • Hold the A/C compressor shaft.
    • Rotate the A/C clutch hub counter clockwise to remove.
    • For fixed compressor
      Torque: 177 lb.in (20 Nm)
    • For EVDC compressor
      Torque: 128 lb.in (14.5 Nm)
Ford Fusion. Air Conditioning (A/C) Clutch and Air Conditioning (A/C) Clutch Field Coil. General Procedures
  1. NOTE: Replacing the snap ring is only necessary when installing a new component.

    Remove the A/C compressor pulley snap ring.
Ford Fusion. Air Conditioning (A/C) Clutch and Air Conditioning (A/C) Clutch Field Coil. General Procedures

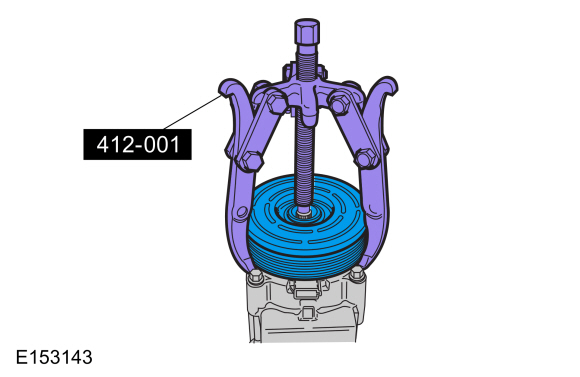

  1. NOTE: Do not use air tools. Damage to the A/C clutch pulley or A/C compressor may result.

    Remove the A/C compressor pulley.
    Install Special Service Tool: 412-001 (T71P-19703-B)  Remover, Compressor Pulley.
Ford Fusion. Air Conditioning (A/C) Clutch and Air Conditioning (A/C) Clutch Field Coil. General Procedures

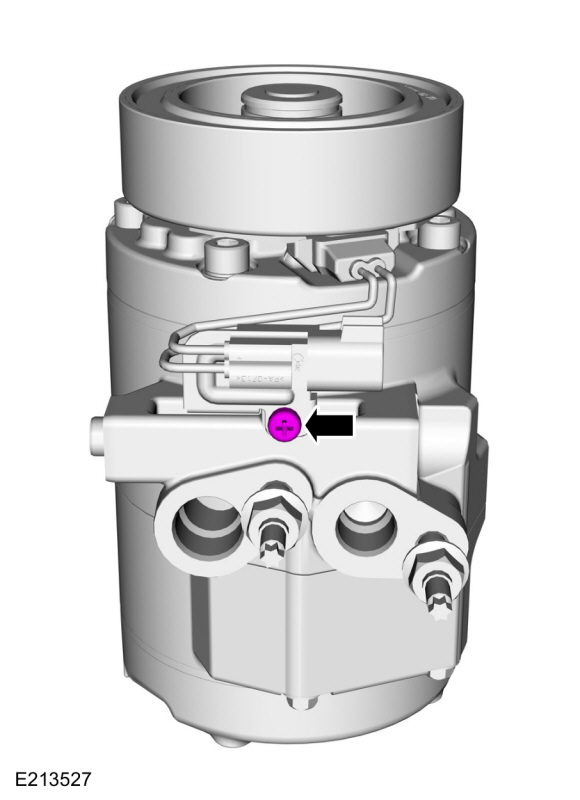

  1. Remove the A/C clutch field coil electrical connector retainer.
    Torque: 35 lb.in (4 Nm)
Ford Fusion. Air Conditioning (A/C) Clutch and Air Conditioning (A/C) Clutch Field Coil. General Procedures

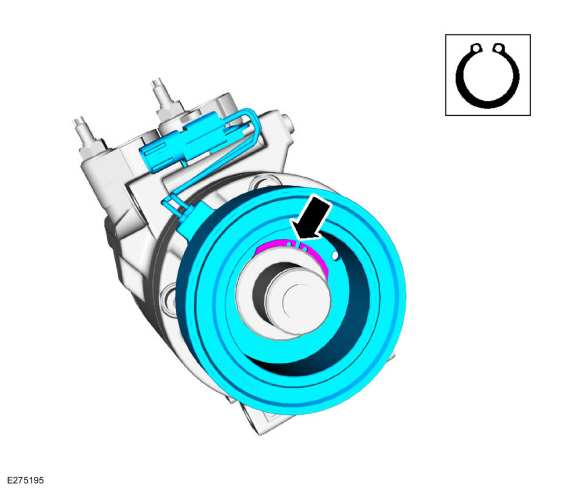

  1. NOTE: Replacing the snap ring is only necessary when installing a new component.

    Remove the A/C clutch field coil snap ring, and remove the clutch field coil.
Ford Fusion. Air Conditioning (A/C) Clutch and Air Conditioning (A/C) Clutch Field Coil. General Procedures
    • Visually inspect the A/C clutch disc and hub, compressor pulley and clutch field coil for damage.
    • Inspect for physical damage, including cracked or melted components or discoloration due to excessive heat.
    • Inspect for excessive wear, including grooving in the A/C clutch disc and hub or the compressor pulley that is more than fingernail depth.
    • Inspect for roughness in the A/C compressor pulley bearing.
  1. To install, reverse the steps in this procedure.

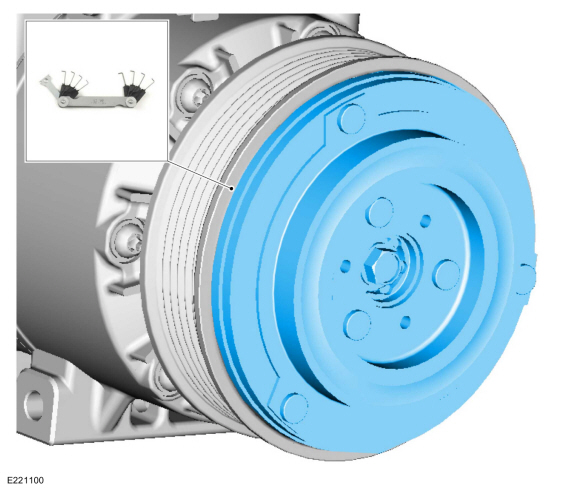

  1. NOTE: Spring plate clutch similar.

    Measure and adjust the clutch air gap by removing or adding clutch disc and hub spacers. Refer to Air Conditioning A/C Clutch Air Gap Adjustment procedure in Group 412.
