Ford Fusion: Locking and Unlocking / Activating Intelligent Access

General Information

You can unlock and lock the vehicle without taking the keys out of your pocket or purse when your intelligent access key is within 3 ft (1 m) of your vehicle. Intelligent access uses a sensor on the back of the door handle for unlocking and a separate sensor on the face of each door handle for locking.

The system will not function if:

  • Your vehicle battery has no charge.
  • The key battery has no charge.
  • The passive key frequencies are jammed.

Note: The system may not function if the passive key is close to metal objects or electronic devices, for example keys or a cell phone.

Note: If the system does not function, use the key blade to lock and unlock your vehicle.

Unlocking Using Intelligent Access

Ford Fusion. Activating Intelligent Access

With your intelligent access key within 3 ft (1 m) of your vehicle, touch the unlock sensor on the back of the door handle for a brief period and then pull on the door handle to unlock, being careful to not touch the lock sensor at the same time or pulling the door handle too quickly. The intelligent access system requires a brief delay to authenticate your intelligent access key fob.

Locking Using Intelligent Access

Ford Fusion. Activating Intelligent Access

With your intelligent access key within 3 ft (1 m) of your vehicle, touch the outer door handle lock sensor for approximately one second to lock, being careful to not touch the unlock sensor on the back of the door handle at the same time. After locking, you can immediately pull on the door handle to confirm locking occurred without inadvertently unlocking.

Opening the Luggage Compartment

Ford Fusion. Activating Intelligent Access

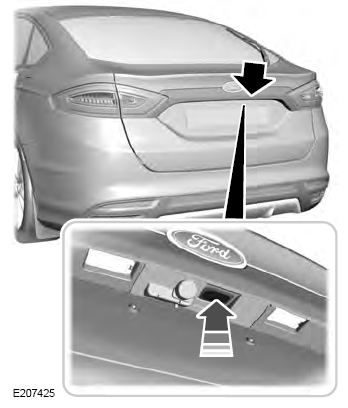

Press the exterior release button hidden above the license plate.

    Remote Control

    You can use the remote control at any time. The luggage compartment release button only works when your vehicle speed is less than 3 mph (5 km/h). Unlocking the Doors (Two-Stage Unlock) Press the button to unlock the driver door...

    Smart Unlocks for Intelligent Access Keys

    This feature helps to prevent you from locking your intelligent access key inside your vehicle’s passenger compartment or rear cargo area. When you electronically lock your vehicle with any door open, the transmission is in park (P) and the ignition is off, the system searches for an intelligent access key inside your vehicle after you close the last door...
