Ford Fusion: Blind Spot Information System (IF EQUIPPED) / Using the Blind Spot Information System

Vehicles with Automatic Transmission

The system turns on when all of the following occur:

  • You start your vehicle.
  • You shift into drive (D).
  • The vehicle speed is greater than 6 mph (10 km/h).

Note: The system does not operate in park (P) or reverse (R).

Vehicles with Manual Transmission

The system turns on when all of the following occur:

  • You start your vehicle.
  • The vehicle speed is greater than 6 mph (10 km/h).

Note: The system does not operate in reverse (R).

System Lights and Messages

Ford Fusion. Using the Blind Spot Information System

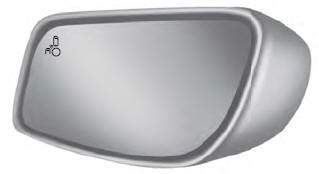

When the system detects a vehicle, an alert indicator illuminates in the exterior mirror on the side the approaching vehicle is coming from. If you turn the direction indicator on for that side of your vehicle, the alert indicator flashes.

Note: The system may not alert you if a vehicle quickly passes through the detection zone.

Blocked Sensors

Ford Fusion. Using the Blind Spot Information System

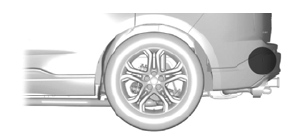

The sensors are behind the rear bumper on both sides of your vehicle.

Note: Keep the sensors free from snow, ice and large accumulations of dirt.

Note: Do not cover the sensors with bumper stickers, repair compound or other objects.

Note: Blocked sensors could affect system performance.

If the sensors are blocked, a message may appear in the information display. The alert indicators remain illuminated but the system does not alert you.

    Blind Spot Information System (IF EQUIPPED)

    WARNING: Do not use the blind spot information system as a replacement for using the interior and exterior mirrors or looking over your shoulder before changing lanes...

    System Errors. Switching the System Off and On

    System Errors If the system detects a fault, a warning lamp illuminates and a message displays. Switching the System Off and On You can switch the system off using the information display...
