Ford Fusion: Rear Suspension / Spring. Removal and Installation

Removal

NOTICE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

  1. Remove the lower arm.
    Refer to: Lower Arm (204-02 Rear Suspension, Removal and Installation).

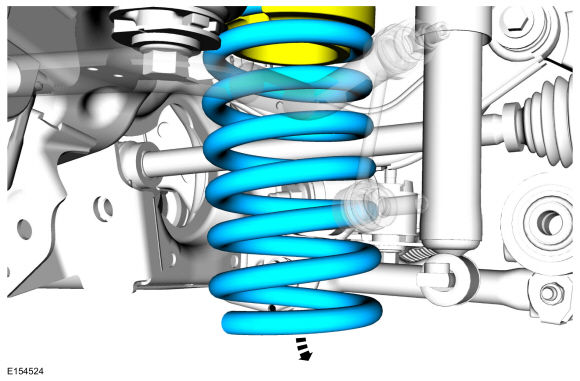

  1. Remove the spring.
Ford Fusion. Spring. Removal and Installation

Installation

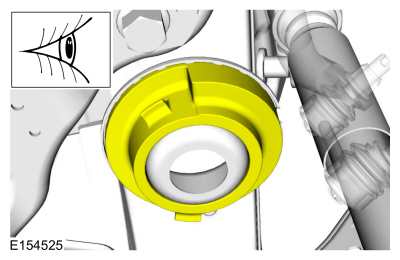

  1. Visual check.
    Check the upper spring seat for damage. Replace as necessary.
Ford Fusion. Spring. Removal and Installation
  1. Install the spring.
Ford Fusion. Spring. Removal and Installation

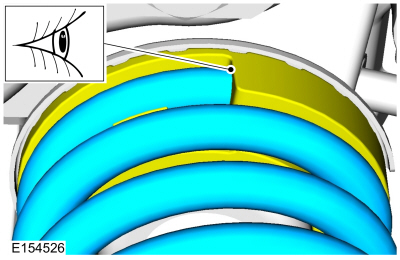

  1. NOTE: Make sure that the spring is correctly located in the upper spring seat.

    Visual check.
    Align the spring in the upper spring seat.
Ford Fusion. Spring. Removal and Installation
  1. Install the lower arm.
    Refer to: Lower Arm (204-02 Rear Suspension, Removal and Installation).
