Ford Fusion: Exterior Lighting / Rear Lamp Assembly - 4-Door. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Electrical / Lighting / Exterior Lighting / Rear Lamp Assembly - 4-Door. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

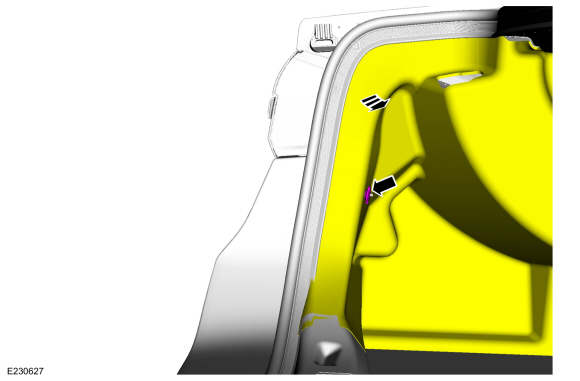

  1. Remove the luggace net nut and position the luggage compartment interior trim aside.
Ford Fusion. Rear Lamp Assembly - 4-Door. Removal and Installation

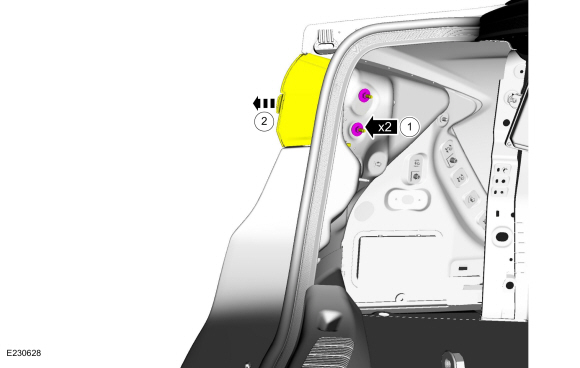

    1. Remove the nuts.
      Torque: 28 lb.in (3.2 Nm)
    1. Position the rear lamp assembly.
Ford Fusion. Rear Lamp Assembly - 4-Door. Removal and Installation

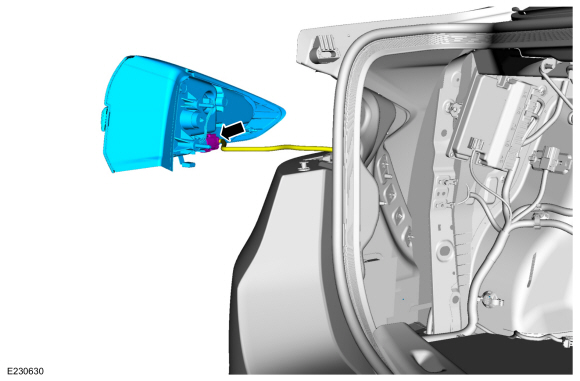

  1. Disconnect the electrical connector and remove the rear lamp.
Ford Fusion. Rear Lamp Assembly - 4-Door. Removal and Installation

Installation

  1. To install, reverse the removal procedure.

    Stoplamp Switch. Removal and Installation

    Removal NOTICE: Do not press, pull or otherwise move the brake pedal while removing or installing the stoplamp switch. The switch must be installed with the booster push rod attached to the brake pedal and with the brake pedal in the at-rest position...
