Ford Fusion: Engine System - General Information / Piston Inspection. General Procedures
Ford Fusion 2013–2020 Service Manual / Powertrain / Engine / Engine System - General Information / Piston Inspection. General Procedures
Inspection
-
NOTE: Do not use a caustic cleaning solution or a wire brush to clean the pistons or damage can occur.

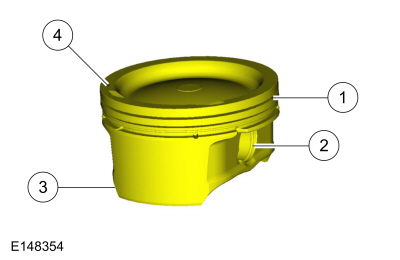

Clean and inspect the (1) ring lands, (2) pin bosses, (3) skirts and the (4) tops of the pistons. If wear marks, scores or glazing is found on the piston skirt, check for a bent or twisted connecting rod.
 |
-
NOTE: Make sure the oil ring holes are clean.

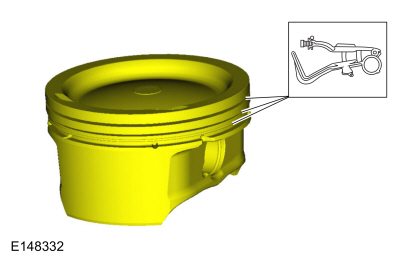

Using a Piston Ring Groove Scraper, clean the piston ring grooves.
 |
Exhaust Manifold Cleaning and Inspection. General Procedures
Special Tool(s) /
General Equipment
Feeler Gauge
Cleaning
Clean the exhaust manifold using a suitable solvent. Use
a plastic scraping tool to clean the gasket sealing surfaces...
Piston Ring End Gap. General Procedures
Special Tool(s) /
General Equipment
Feeler Gauge
Check
NOTE:
Refer to the appropriate Section 303-01 for the specification.
NOTE:
Use care when fitting piston rings to avoid possible damage to the piston ring or the cylinder bore...
