Ford Fusion: Automatic Transmission - 6-Speed Automatic Transmission – 6F35 / Low One-Way Clutch Assembly. Description and Operation
Low One-Way Clutch Exploded View
Item
|
Description
|
1
|
Transmission case
|
2
|
Low One-Way Clutch
|
3
|
Rear planetary carrier
|

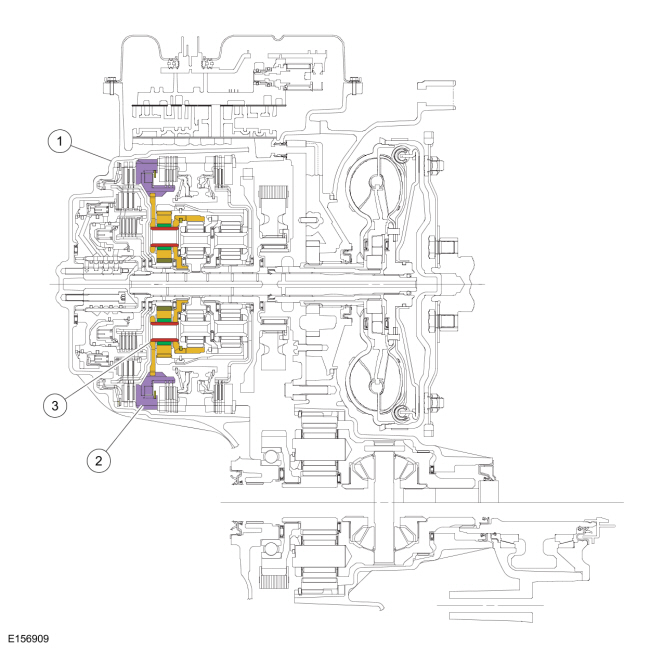

Low One-Way Clutch Cutaway View
Low One way Clutch
The
low One-Way Clutch (OWC) is a brake clutch that holds the rear
planetary carrier in one direction and allows it to freewheel in the
opposite direction which eliminates engine braking in 1st gear when the
transmission is in DRIVE. The low One-Way Clutch (OWC) is also the
pressure plate for the intermediate (2, 6) clutch.
Item
Description
1
Transmission internal wiring harness frame
2
Main control valve body
3
Check balls (3 required)
4
Solenoid damper SSA
5
Solenoid body-to-valve body separator plate
6
Damper pistons and springs (3 required)
7
Elastomeric damper..
