Special Tool(s) / General Equipment

	205-153 (T80T-4000-W) Handle
	307-718 Installer, Axle Seal TKIT-2013B-FL TKIT-2013B-ROW
Puller
Punch

Removal

Remove the RH halfshaft.
Refer to: Front Halfshaft RH (205-04 Front Drive Halfshafts, Removal and Installation).

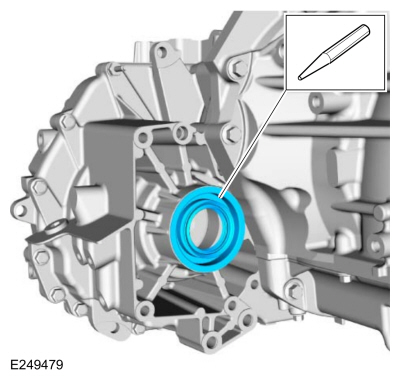

Using a punch, poke a small hole in the halfshaft seal.
Use the General Equipment: Punch

Ford Fusion. Halfshaft Seal RH - FWD. Removal and Installation

Using a dent puller, remove and discard the halfshaft seal.
Use the General Equipment: Puller

Installation

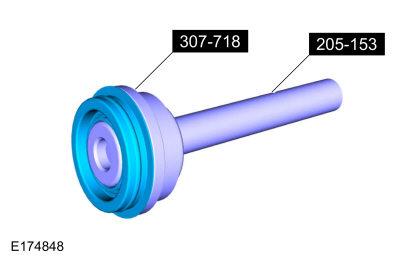

Install a new halfshaft seal on the special tools.
Use Special Service Tool: 205-153 (T80T-4000-W) Handle. , 307-718 Installer, Axle Seal.

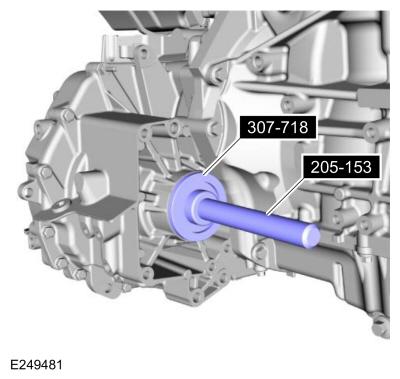

Using the special tools, install the RH halfshaft seal.
Use Special Service Tool: 205-153 (T80T-4000-W) Handle. , 307-718 Installer, Axle Seal.

Install the RH halfshaft.
Refer to: Front Halfshaft RH (205-04 Front Drive Halfshafts, Removal and Installation).

Check the transmission fluid level.
Refer to: Transmission Fluid Level Check (307-01A Automatic Transmission - 6-Speed Automatic Transmission – 6F35, General Procedures).
