Ford Fusion: Vehicle Dynamic Suspension / Front Suspension Height Sensor. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Chassis / Suspension / Vehicle Dynamic Suspension / Front Suspension Height Sensor. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

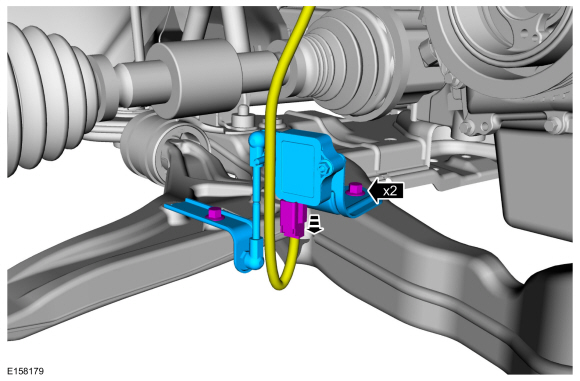

  1. NOTE: RH height sensor assembly shown, LH similar.


    • Disconnect the front suspension height sensor electrical connector.
    • Remove the front suspension height sensor arm bracket-to-lower arm bolt.
      Torque: 177 lb.in (20 Nm)
    • Remove the front suspension height sensor bracket mounting bolt and remove the sensor.
      Torque: 177 lb.in (20 Nm)
Ford Fusion. Front Suspension Height Sensor. Removal and Installation

Installation

  1. NOTE: The RH and LH height sensor assemblies cannot be used on opposite sides of the vehicle.

    To install, reverse the removal procedure.
  1. Calibrate the suspension height sensor. Connect the scan tool and carry out the Ride Height Calibration routine. Follow the scan tool directions.
