Ford Fusion: Seatbelts / Fastening the Seatbelts

Ford Fusion 2013–2020 Owners Manual / Seatbelts / Fastening the Seatbelts

The front outboard and rear safety restraints in the vehicle are combination lap and shoulder belts.

Ford Fusion. Fastening the Seatbelts

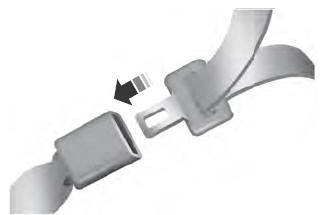

Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) until you hear a snap and feel it latch. Make sure that you securely fasten the tongue in the buckle.

Ford Fusion. Fastening the Seatbelts

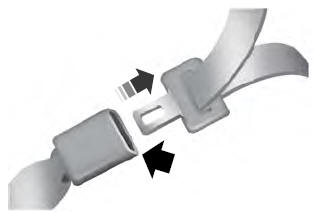

To unfasten, press the release button and remove the tongue from the buckle.

Principle of Operation

WARNING: Always drive and ride with your seatback upright and the lap belt snug and low across the hips. WARNING: Children must always be properly restrained...

Using Seatbelts During Pregnancy

WARNING: Always ride and drive with your seatback upright and properly fasten your seatbelt. Fit the lap portion of the seatbelt snugly and low across the hips...
