Ford Fusion: Windows and Mirrors / Power Windows

WARNING: Do not leave children unattended in your vehicle and do not let them play with the power windows. Failure to follow this instruction could result in personal injury.

WARNING: When closing the power windows, verify they are free of obstruction and make sure that children and pets are not in the proximity of the window openings.

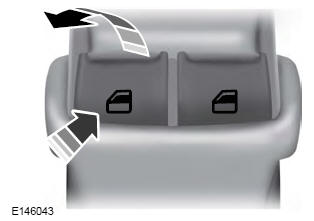

Ford Fusion. Power Windows

Note: You may hear a pulsing noise when only one of the windows is open. Lower the opposite window slightly to reduce this noise.

Press the switch to open the window.

Lift the switch to close the window.

One-Touch Down

Press the switch fully and release it. Press again or lift it to stop the window.

One-Touch Up

Lift the switch fully and release it. Press again or lift it to stop the window.

Resetting One-Touch Up

Start the engine.

  1. Lift and hold the window switch until you fully close the door window. Continue to hold the switch for a few seconds after you close the window.
  2. Release the window switch.
  3. Press and hold the window switch until you fully open the door window.
  4. Release the window switch.
  5. Lift and hold the window switch until you fully close the window.
  6. Test for correct window operation by carrying out the one-touch down and one-touch up features.

Bounce-Back

The window stops automatically while closing. It reverses some distance if there is an obstacle in the way.

Overriding the Bounce-Back Feature

WARNING: If you override bounce-back, the window does not reverse if it detects an obstacle. Take care when closing the windows to avoid personal injury or damage to your vehicle.

Pull up the window switch and hold within a few seconds of the window reaching the bounce-back position. The window travels up with no bounce-back protection. The window stops if you release the switch before the window fully closes.

Window Lock

Ford Fusion. Power Windows

Press the control to lock or unlock the rear window controls. It illuminates when you lock the rear window controls.

Accessory Delay

You can use the window switches for several minutes after you switch the ignition off or until you open either front door.

    Windows and Mirrors

    ..

    Global Opening and Closing

    You can use the remote control to operate the windows with the ignition off. Note: You can enable or disable this feature in the information display or see an authorized dealer...
