Ford Fusion: Exterior Lighting / Headlamp Control Module (HCM). Removal and Installation

Ford Fusion 2013–2020 Service Manual / Electrical / Lighting / Exterior Lighting / Headlamp Control Module (HCM). Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.
Using a diagnostic scan tool, begin the PMI process for the HCM following the on-screen instructions

Remove the driver knee airbag.
Refer to: Driver Knee Airbag (501-20B Supplemental Restraint System, Removal and Installation).

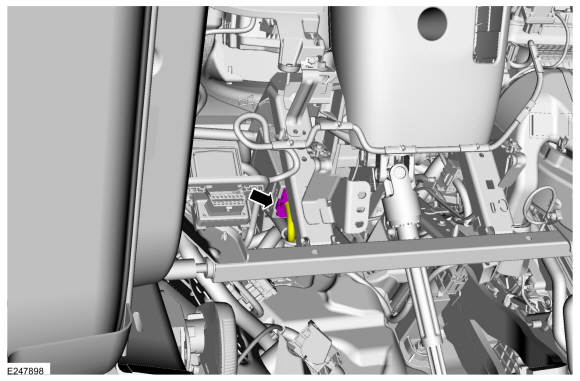

Disconnect the HCM electrical connector.

Ford Fusion. Headlamp Control Module (HCM). Removal and Installation

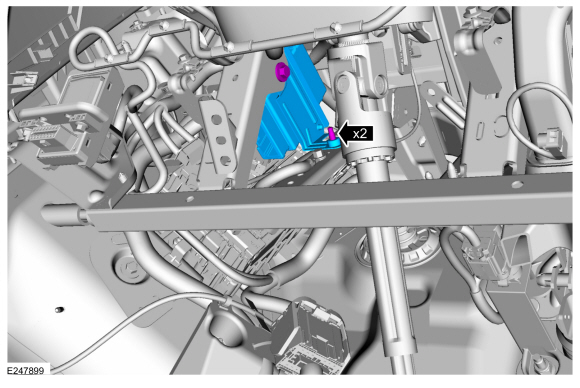

Remove the bolt and the HCM.

Installation

To install, reverse the removal procedure.

NOTE: This step is only necessary if replacing the component.
Using a diagnostic scan tool, complete the PMI process for the HCM following the on-screen instructions.

Headlamp Bulb. Removal and Installation

Removal NOTE: The procedure for the LH headlamp assembly is shown, the RH headlamp assembly is similar. NOTE: Removal steps in this procedure may contain installation details...

Headlamp Switch. Removal and Installation

Removal NOTE: Removal steps in this procedure may contain installation details. Release the clips and remove the steering column opening trim panel...
