Ford Fusion: Anti-Lock Brake System (ABS) and Stability Control / Front Wheel Speed Sensor. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Chassis / Brake System / Anti-Lock Brake System (ABS) and Stability Control / Front Wheel Speed Sensor. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the wheel and tire.
    Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

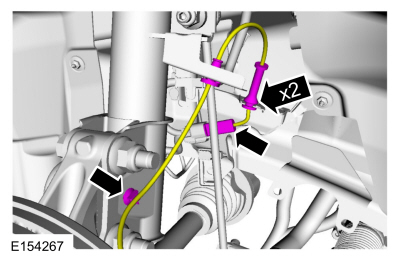

  1. Disconnect the electrical connector and detach the wiring retainers.
Ford Fusion. Front Wheel Speed Sensor. Removal and Installation

  1. NOTE: Make sure that the sensor housing is clean and free of foreign material.

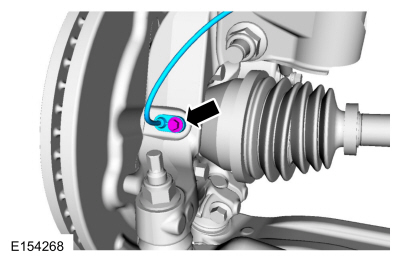

    Remove the bolt and the front wheel speed sensor.
    Torque: 80 lb.in (9 Nm)
Ford Fusion. Front Wheel Speed Sensor. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
