Ford Fusion: Hydraulic Brake Actuation / Brake Fluid Reservoir. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Chassis / Brake System / Hydraulic Brake Actuation / Brake Fluid Reservoir. Removal and Installation

Materials

Name Specification
Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid
PM-20
WSS-M6C65-A2


Removal

NOTICE: If the brake fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the brake master cylinder.
    Refer to: Brake Master Cylinder (206-06 Hydraulic Brake Actuation, Removal and Installation).

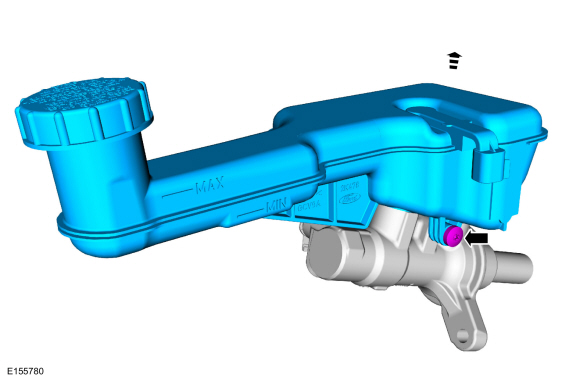

  1. Remove the pin and the brake fluid reservoir.
    Torque: 49 lb.in (5.5 Nm)
Ford Fusion. Brake Fluid Reservoir. Removal and Installation
  1. NOTE: Install new brake fluid reservoir seals. Lubricate the seals with clean, specified brake fluid.

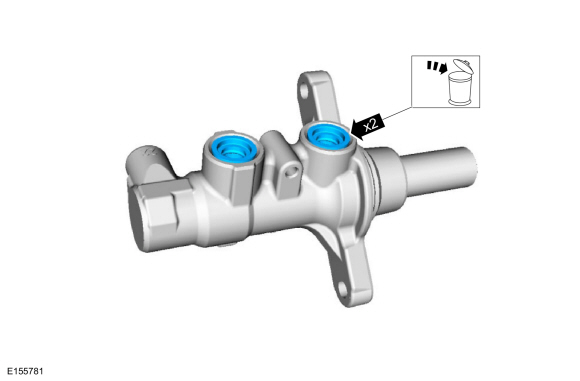

    Remove and discard the brake fluid reservoir seals.
    Material: Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / PM-20 (WSS-M6C65-A2)
Ford Fusion. Brake Fluid Reservoir. Removal and Installation

Installation

  1. To install, reverse the removal procedure.

    Hydraulic Brake Actuation

    ..

    Brake Master Cylinder. Removal and Installation

    Removal NOTE: Removal steps in this procedure may contain installation details. All vehicles NOTICE: Before removing the master cylinder, relieve the vacuum in the brake booster or the master cylinder O-ring seal may be drawn into the brake booster, causing brake booster failure and increased brake pedal effort...
