Ford Fusion: Capacities and Specifications / Capacities and Specifications - 2.7L EcoBoost™

Ford Fusion 2013–2020 Owners Manual / Capacities and Specifications / Capacities and Specifications - 2.7L EcoBoost™

Use oil and fluid that meets the defined specification and viscosity grade.

If you do not use oil and fluid that meets the defined specification and viscosity grade, it could result in:

  • Component damage that your vehicle warranty does not cover.
  • Longer engine cranking periods.
  • Increased emission levels.
  • Reduced engine performance.
  • Reduced fuel economy.
  • Reduced brake performance.

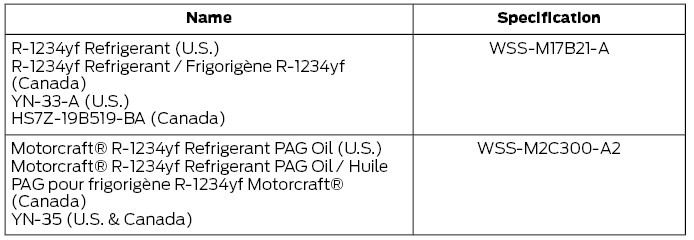

Air Conditioning System

WARNING: The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.

Capacities

Ford Fusion. Capacities and Specifications - 2.7L EcoBoost™

Materials

Ford Fusion. Capacities and Specifications - 2.7L EcoBoost™

Automatic Transmission

Note: Automatic transmissions that require MERCON® LV transmission fluid should only use MERCON® LV transmission fluid. The use of any other fluid could cause transmission damage.

Capacities

Ford Fusion. Capacities and Specifications - 2.7L EcoBoost™

1 Approximate dry fill capacity. Actual amount may vary during fluid changes.

Materials

Ford Fusion. Capacities and Specifications - 2.7L EcoBoost™

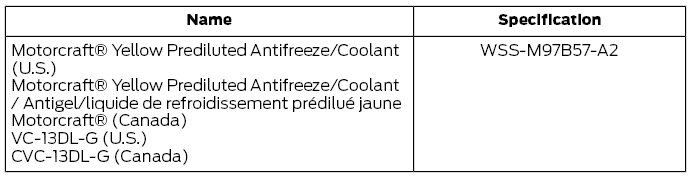

Engine Coolant

Capacities

Ford Fusion. Capacities and Specifications - 2.7L EcoBoost™

Materials

Ford Fusion. Capacities and Specifications - 2.7L EcoBoost™

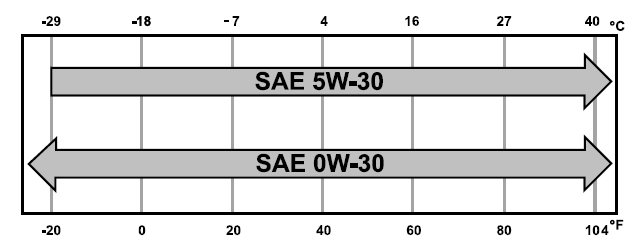

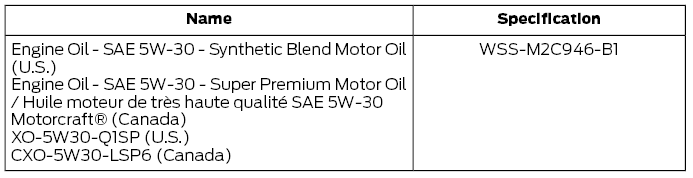

Engine Oil

Ford Fusion. Capacities and Specifications - 2.7L EcoBoost™

Ford Fusion. Capacities and Specifications - 2.7L EcoBoost™

An oil that displays this symbol conforms to current engine, emission system and fuel economy performance standards of ILSAC.

We recommend Motorcraft® motor oil for your vehicle. If Motorcraft® oil is not available, use motor oils of the recommended viscosity grade that meet API SN PLUS requirements and display the API Certification Mark for gasoline engines.

Capacities

Ford Fusion. Capacities and Specifications - 2.7L EcoBoost™

Materials

Ford Fusion. Capacities and Specifications - 2.7L EcoBoost™

Alternative Engine Oil for Extremely Cold Climates

To improve engine cold start performance, we recommend that you use the following alternative engine oil in extremely cold climates, where the ambient temperature reaches -22.0°F (-30°C) or below.

Materials

Ford Fusion. Capacities and Specifications - 2.7L EcoBoost™

Ford Fusion. Capacities and Specifications - 2.7L EcoBoost™

Fuel Tank

Capacities

Ford Fusion. Capacities and Specifications - 2.7L EcoBoost™

Grease

Materials

Ford Fusion. Capacities and Specifications - 2.7L EcoBoost™

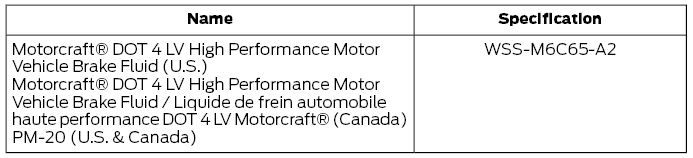

Hydraulic Brake System

Note: We recommend using DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid could cause reduced brake performance and not meet our performance standards. Keep brake fluid clean and dry. Contamination with dirt, water, petroleum products or other materials could result in brake system damage and possible failure.

Materials

Ford Fusion. Capacities and Specifications - 2.7L EcoBoost™

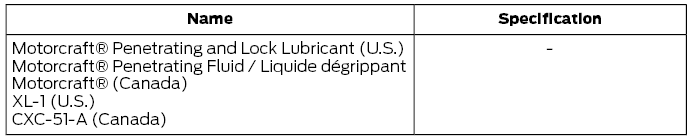

Locks

Materials

Ford Fusion. Capacities and Specifications - 2.7L EcoBoost™

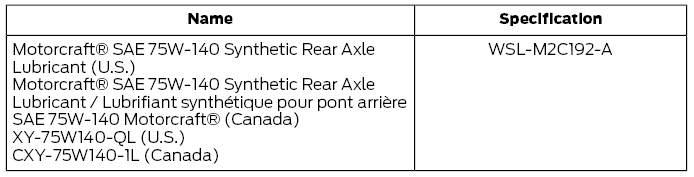

Power Transfer Unit

Capacities

Ford Fusion. Capacities and Specifications - 2.7L EcoBoost™

Materials

Ford Fusion. Capacities and Specifications - 2.7L EcoBoost™

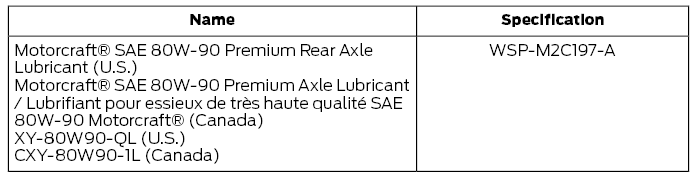

Rear Axle

Capacities

Ford Fusion. Capacities and Specifications - 2.7L EcoBoost™

Materials

Ford Fusion. Capacities and Specifications - 2.7L EcoBoost™

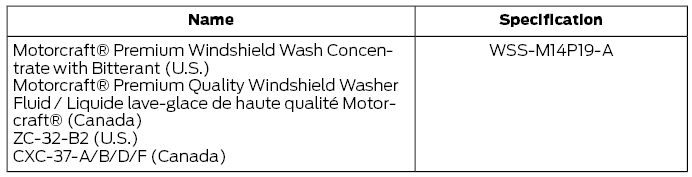

Washer Reservoir

Capacities

Ford Fusion. Capacities and Specifications - 2.7L EcoBoost™

Materials

Ford Fusion. Capacities and Specifications - 2.7L EcoBoost™
