Ford Fusion: Seats / Head Restraints
WARNING: Fully adjust the head
restraint before you sit in or operate your
vehicle. This will help minimize the risk
of neck injury in the event of a crash. Do
not adjust the head restraint when your
vehicle is moving.
WARNING: The head restraint is a
safety device. Whenever possible it
should be installed and properly
adjusted when the seat is occupied.
Failure to adjust the head restraint
properly could reduce its effectiveness
during certain impacts.
Note: Adjust the seat backrest to an upright
driving position before adjusting the head
restraint. Adjust the head restraint so that
the top of it is level with the top of your head
and as far forward as possible. Make sure
that you remain comfortable. If you are
extremely tall, adjust the head restraint to
its highest position.

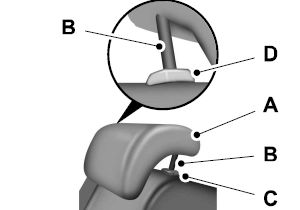

Front Seat and Rear Seat Outboard Head Restraints

Rear Center Head Restraint

The head restraints consist of:
- An energy absorbing head
restraint.
- Two steel stems.
- Guide sleeve adjust and unlock
button.
- Guide sleeve unlock and remove
button (If Equipped).
Adjusting the Head Restraint
Raising the Head Restraint
Pull the head restraint up.
Lowering the Head Restraint
- Press and hold button C.
- Push the head restraint down.
Removing the Head Restraint (If Equipped)
- Pull the head restraint up until it
reaches its highest position.
- Press and hold buttons C and D.
- Pull the head restraint up.
Installing the Head Restraint
Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

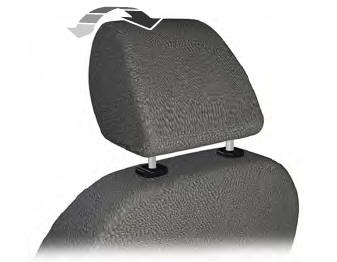

Tilting Head Restraints (If Equipped)

The front head restraints tilt for extra
comfort.
- Adjust the seat backrest to an upright
driving or riding position.
- Pivot the head restraint forward toward
your head to the desired position.
After the head restraint reaches the
forward-most tilt position, pivot it forward
again to release it to the rearward, un-tilted
position.
WARNING: Sitting improperly, out
of position or with the seatback reclined
too far can take weight off the seat
cushion and affect the decision of the
passenger sensing system, resulting in
serious injury or death in the event of a
crash...
WARNING: Do not adjust the driver
seat or seatback when your vehicle is
moving.
WARNING: Rock the seat
backward and forward after releasing
the lever to make sure that it is fully
engaged...
